Product Details:
|
| Certifications: | ISO, ASTM, EN, Etc. | Material: | Stainless Steel |
|---|---|---|---|
| Heat Treatment: | Optional | Stock: | Always In Good Stock |
| Quality: | Prime Grade | Applications: | Kitchenware, Architecture, Automotive, Etc. |
| Commodity: | Inconel825 Plate Nickel Based Alloy Plate | Cutting Mode: | Flame|plasma |
| Weight: | Lightweight | Surface: | Mirror Or Matt 2B NO.1 |
| Products: | Stainless Steel Plate | Finishing: | Hot Rolled |
| Application: | Widely | Metal Processed: | Stainless Steel |
| Highlight: | 4”x 8” Alloy Steel Plate,Inconel 825 Alloy Steel Plate,825 Alloy Steel Plate |
||
| Product Name | nickel alloy inconel 825 sheet |
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
| Shape | Round,Forging,Ring,Coil,Flange,Disc,Foil,Spherical,Ribbon,Square,Bar,Pipe,Sheet |
|
Grade |
Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Others:253Ma,254SMo,654SMo,F50(UNSS32100)F60,F61,F65,1J22,N4,N6 etc | |
| Alloy : Alloy 20/28/31 | |
| Hastelloy:HastelloyB/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g | |
| Hastelloy B / UNS N10001,Hastelloy B-2 / UNS N10665 / DIN W. Nr. 2.4617,Hastelloy C, Hastelloy C-4 / UNS N06455 / DIN W. Nr. 2.4610,Hastelloy C-22 / UNS N06022 / DIN W. Nr. 2.4602, Hastelloy C-276 / UNS N10276 / DIN W. Nr. 2.4819,Hastelloy X / UNS N06002 / DIN W. Nr. 2.4665 |
|
| Haynes: Haynes 230/556/188 | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750,Carpenter 20 | |
| Inconel 718 / UNS N07718 / DIN W. Nr. 2.4668,Inconel 601 / UNS N06601 / DIN W. Nr. 2.4851, Inconel 625 / UNS N06625 / DIN W. Nr. 2.4856,Inconel 725 / UNS N07725,Inconel X-750 / UNS N07750 / DIN W. Nr. 2.4669,Inconel 600 / UNS N06600 / DIN W. Nr. 2.4816 |
|
| Incoloy: Incoloy 800/800H/800HT/825/925/926; | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044 | |
| Monel: Monel 400/K500/R405 | |
| Nitronic: Nitronic 40/50/60; | |
| Nimonic: Nimonic 75/80A/90/A263 ; | |
|
Specification |
Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Product Characteristics |
1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Standard | GB,AISI,ASTM,DIN,EN,SUS,UNS etc |

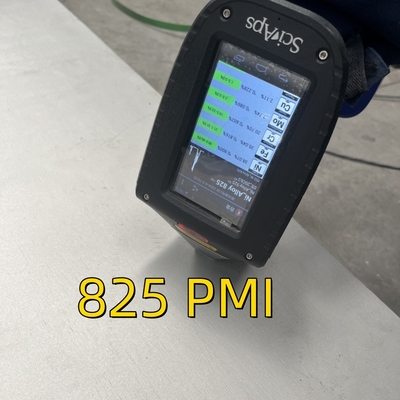

| Inspection | ISO,SGS,BV,PMI and so on. |
| Application | High temperature components such as turbine blades, guide vanes, turbine disks, high pressure compressor disks,machine manufacturing and combustion chambers used in the manufacture of aviation, naval and industrial gas turbines |
|
Packaging |
1. cases packed in wooden cases 2. paper packaging 3. plastic packing 4. foam packaging Packaging according to customer requirements or products |
| Delivery | 7-15 Working days or According to the product |
| Payment | L/C,D/A,D/P,T/T,Western Union,MoneyGram,According to customer requirements payments for offline orders. |

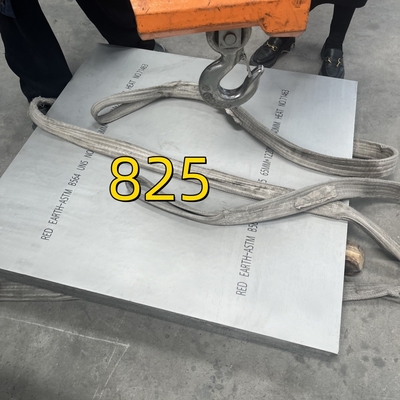

Alloy 825 (N08825) is a titanium-stabilised nickel-chromium-iron-molybdenum-copper alloy designed for use in extremely corrosive environments. It has a very high resistance to oxidation and outstanding resistance to stress corrosion cracking in chloride conditions. It achieves good mechanical properties from cryogenic to medium-high temperatures (540oC) and can be significantly strengthened through cold working.
Alloy 825 (N08825) is resistant to pitting corrosion in sulphuric and phosphoric acids and resists attack in strongly oxidising media such as nitrates, nitric acid and oxidising salts. It also resists most organic acids and alkali solutions. The alloy is reasonably ductile and can be worked in a similar way to austenitic stainless steels.
Ni 42.0%, Fe 30.0%, Cr 21.5%, Mo 3.0%, Cu 2.2%
| Ultimate Tensile Strength (N/mm²) | Proof Stress (N/mm²) | Elongation (%) | Hardness (HB) |
|---|---|---|---|
| 590 | 220 | 30 |
Chemical processing | Phosphoric acid evaporators; pickling-tank heaters, pickling hooks and equipment, and chemical process equipment
Power generation | Components for spent nuclear fuel element recovery
Other | Tank trucks and propeller shafts
